SWAN TSP 47-5 160RZ

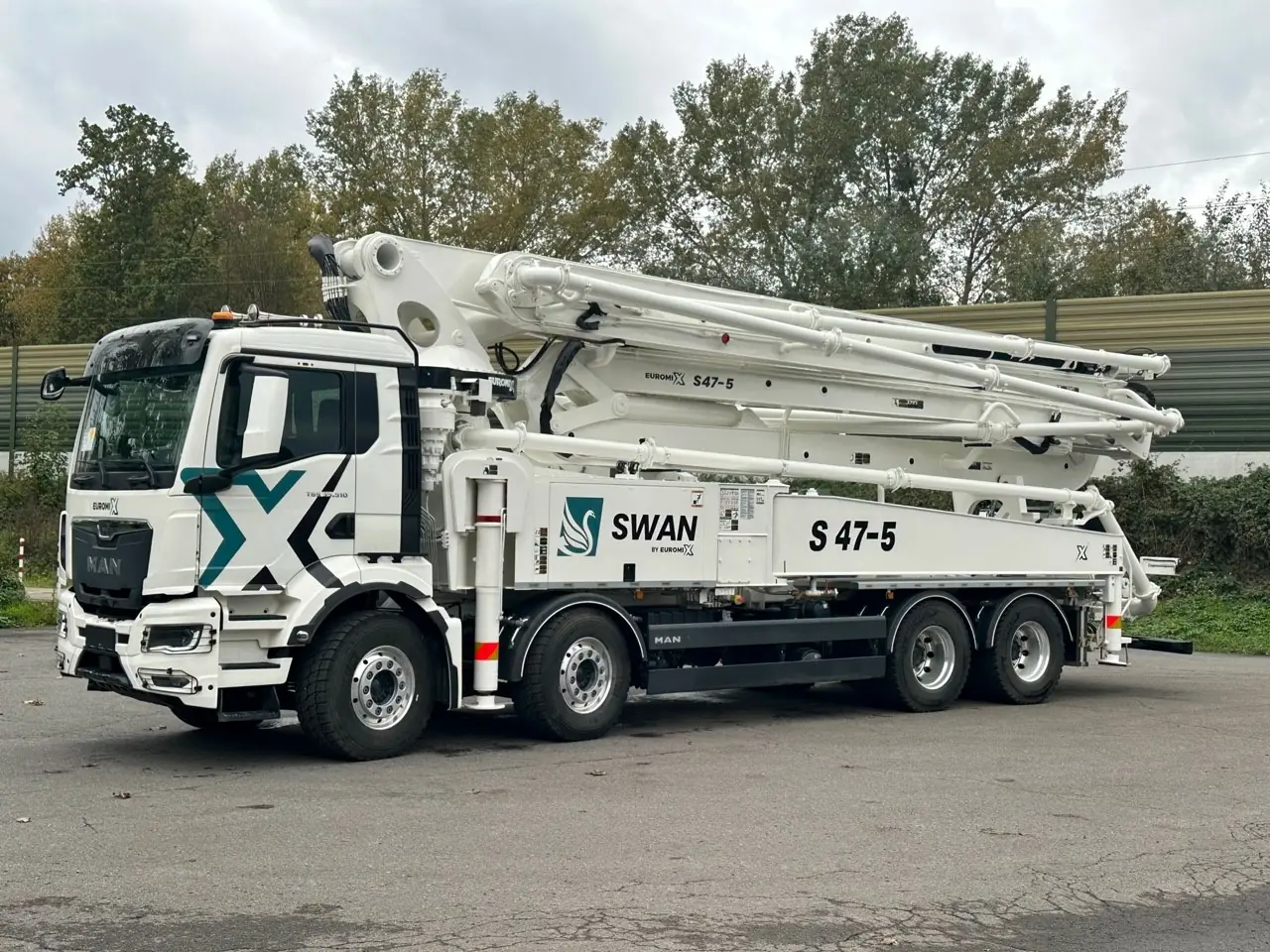

SWAN TSP 47-5 160RZ - Image 2

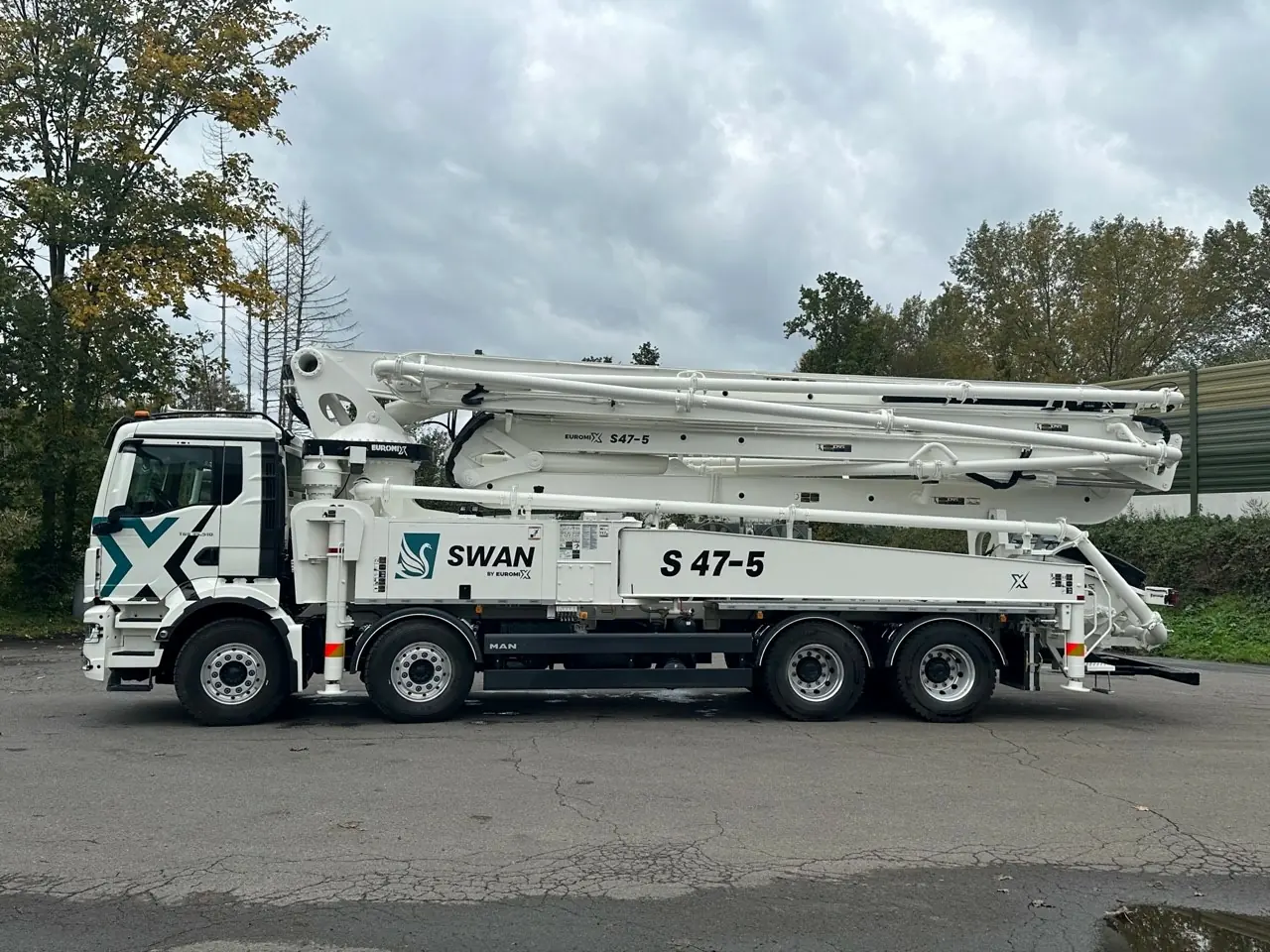

SWAN TSP 47-5 160RZ - Image 3

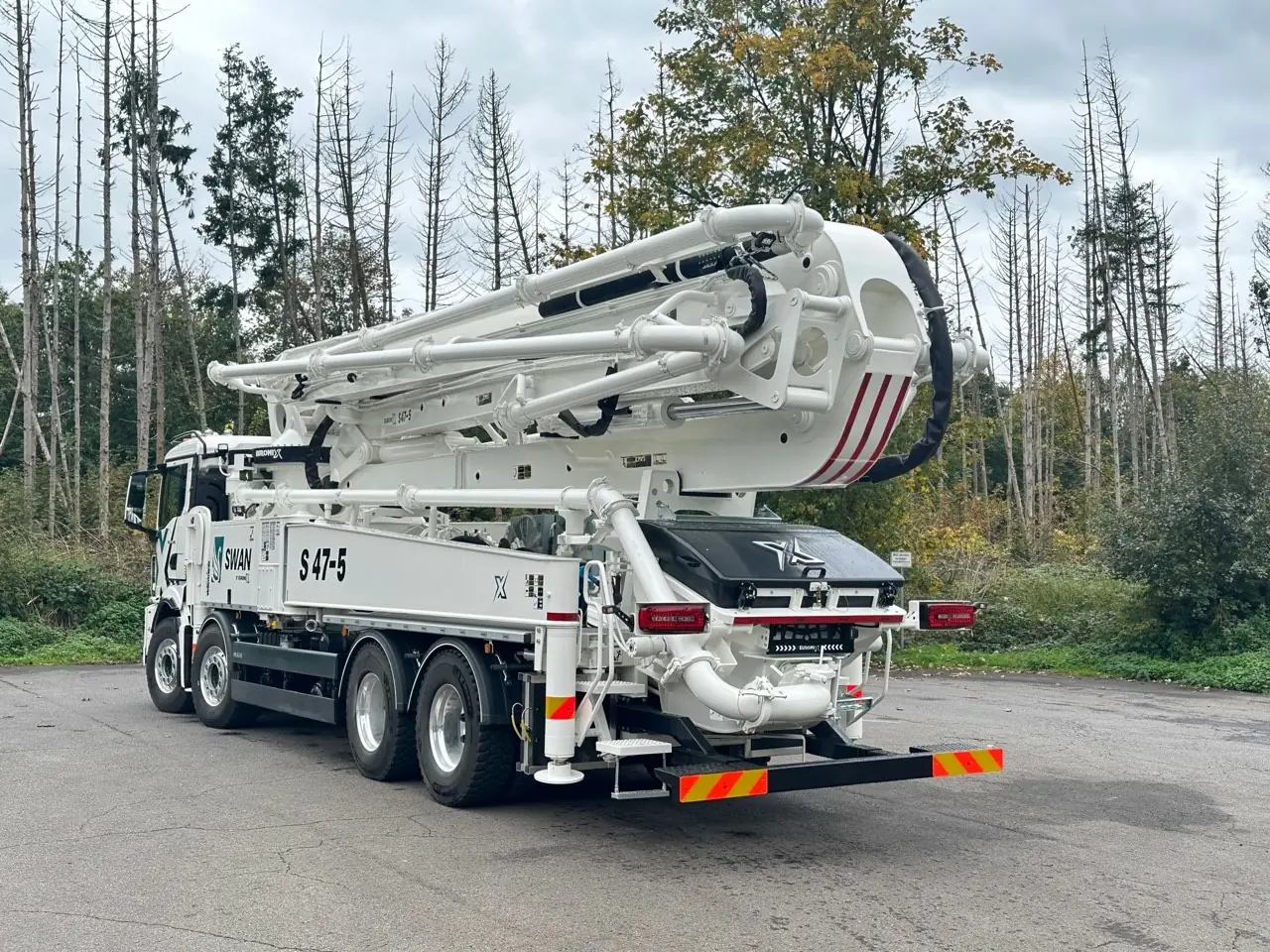

SWAN TSP 47-5 160RZ - Image 4

SWAN TSP 47-5 160RZ

Call for price

Betonpumpe
SWAN® S 47-5

Die ideale Lösung für mittelgroße und große Bauprojekte stellt die 47-Meter-Betonpumpe dar. Sie zeichnet sich durch ihre herausragende horizontale und vertikale Erreichbarkeit aus, und das alles innerhalb einer Transportlänge von 12 Metern.
Request a Quote
Categories: , , Brand:

Specifications

ALEX EQUIPMENT COMPANY

Abschnitt: Betonpumpe

Max. theoretical concrete capacity
160 m³/hr
Max. theoretical concrete pressure
85 bar
Main hydraulic cylinder
Ø2100 mm x Ø140 x Ø80 mm
Concrete valve
S Ventilsystem
Water pump
20 lt/min – 170 bars
Water tank
800 Liter, 12 m Schlauch mit Armaturen
Betontrichter
600 Liter
Fernsteuerung
Scanreco
Pumpen-Typen
Hauptpumpe: REXROTH; Ausleger: Rexroth; Rührwerkspumpe: ASC
Schaltkasten
DIGITEX, wasserdicht
Richtungswechsel-System
Magnetischer Sensor (Näherungsschalter)

Abschnitt: Ausleger

Ausleger
5 Abschnitte, RZ-Faltung
Max. Vertikale Reichweite
46.8 Meter (ohne Endschlauch)
Max. Horizontale Reichweite
42.8 m (ohne Endschlauch)
Endschlauch
3m Einzelflansch, DN 125
Podest-Typ
X-Typ
Drehkranz
365 Grad
Drehgeschwindigkeit
0.3 RPM
Durchmesser der Förderleitung
125 mm

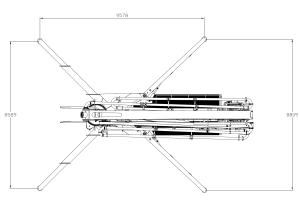

Abstand zwischen den Vorderbeinen
8.6 m
Abstand zwischen den Hinterbeinen
8.7 m

Working radius

Technische Zeichnungen
